1000GPM@185PSI Skid Mounted Fire Pump NFPA20 Standard For Oil Terminals

1000GPM @ 185PSI Skid Mounted Fire Pump With Horizontal Split Case Fire Pump Sets By UL/FM Listed NFPA20 Accordance

DEMANDS INFO FORM Kathy.pdf


Advantages:
Easy to install fire pump set at site.
Easy to commission.
Reduced installation time.
Pre-wired electrical connections.
Less space requirement.
All (pumps, drivers & controllers) on single base
Security:
Single manufacturing source.
Single unit responsibility
100% system operational integrity.
100% secure system.
Convenience in procuring spare parts .
All major components listed products.
Complying with NFPA 20
Testing Facility:
Individual components test facility.
Pump performance test.
Pump hydrostatic test.
Complete package test with automatic operation.
String test.
Driver load test.
Simulating field test.



 Parameters:

 NM package fire pump system consists of pumps, driver, controllers and accessories mounted on a common base frame. High quality UL / FM certified components are used in these systems complying with the requirements of NFPA 20. All necessary wiring between controllers and drivers are done at factory prior to shipment. The automatic air release valve, casing relief valve, suction gauge & discharge gauge are mounted on fire pumps and other accessories are mounted on pre-constructed interconnecting piping as required by NFPA 20. Pressure sensing lines are pre-installed on Electric, Diesel, and Jockey Controllers as per NFPA 20 requirements.
These systems are subjected to rigorous performance tests at factory as per UL, FM & NFPA standards to ensure proper performance of the system as per the design requirements. For completing the installation of these pre-engineered 'ready to install' packages the installing contractor only needs to grout the structural base, connect the suction & discharge pipes and incoming power.

Performance Ranges:


Pump types:

Split-case pump, Jockey pump, In-line pump

Configuration types:

1. Electric motor driven fire pump sets
2. Diesel engine driven fire pump sets
3. jockey pump sets

Standard:

UL Listed
FM Approval
NFPA20 Package

Service:


fire pump skid package

fire fighting pump system

185PSI Skid Mounted Fire Pump

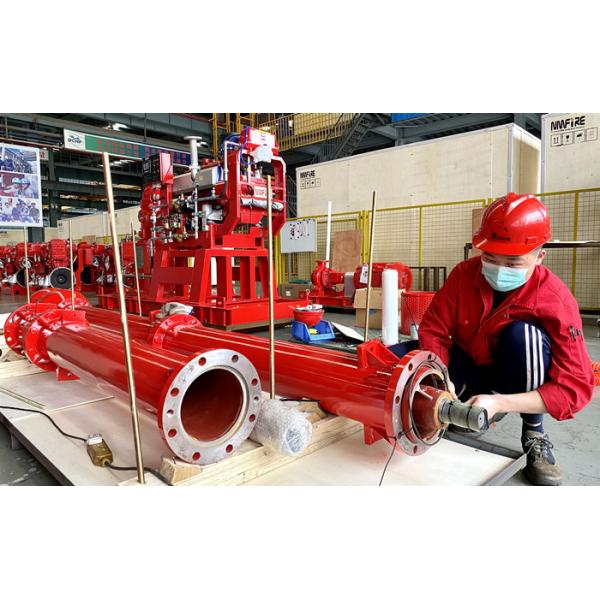

1000GPM@185PSI Skid Mounted Fire Pump NFPA20 Standard For Oil Terminals Images
